Tips on how to fix Canon Printer Error B200

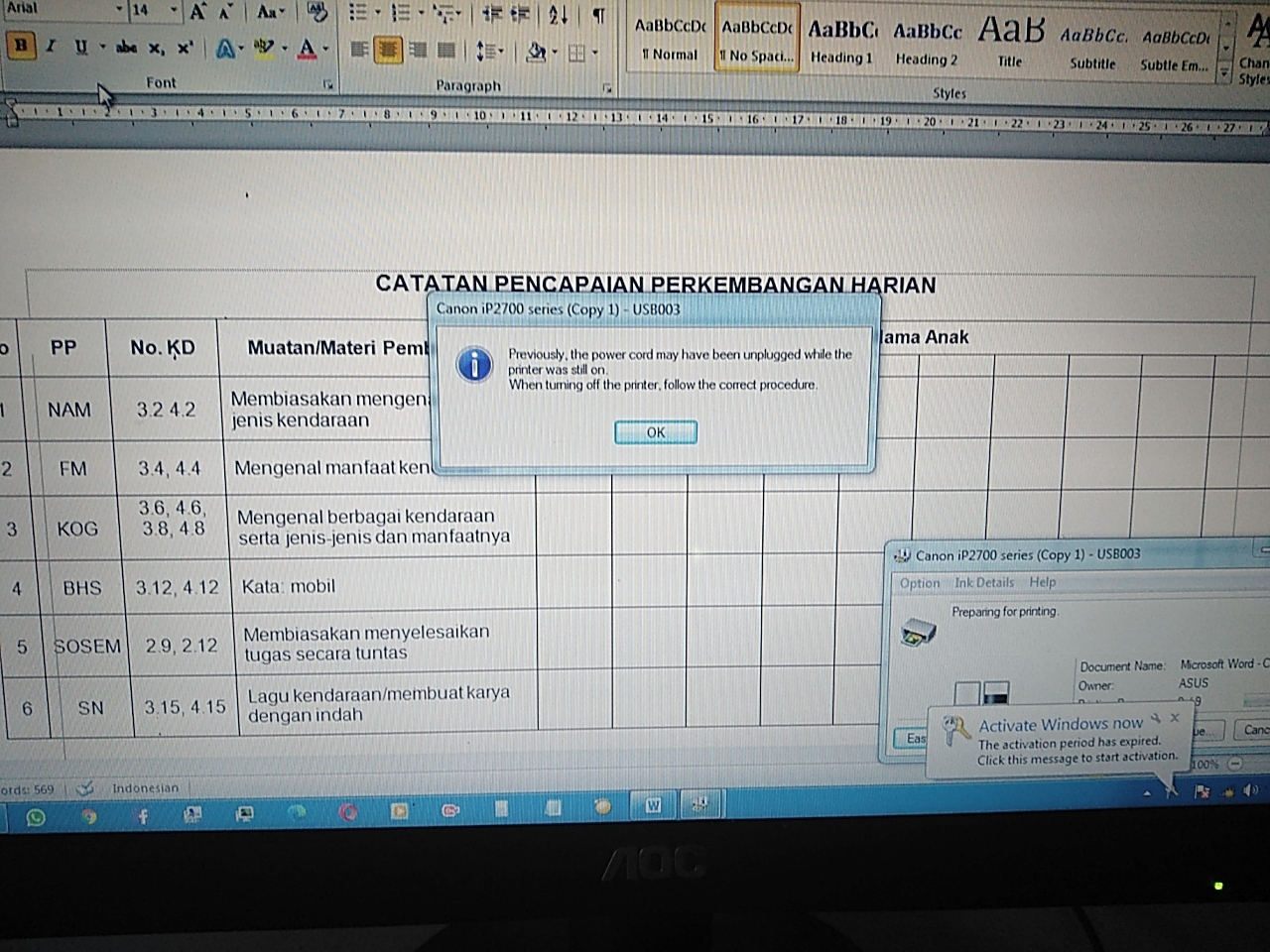

One of the error problems that are often encountered in the use of Canon-brand printers is Error Number: B200 where the printer when used for printing immediately appears a notification window with a red background printer Error Number: B200 A Printer error has occurred. Turn the printer off and unplug the power cord of the printer from the power supply. Then contact the service center. Click Support ... to display information about the service center and the Green Blink Printer, blinking 10 times.

an image
Keyword: canon error b200 español, canon error b200 reset, canon error b200 mp287, canon error b200 ip7250, canon error b200 mg5550, canon error b200 mp540, canon error b200 mg6450, canon error b200 ip7270

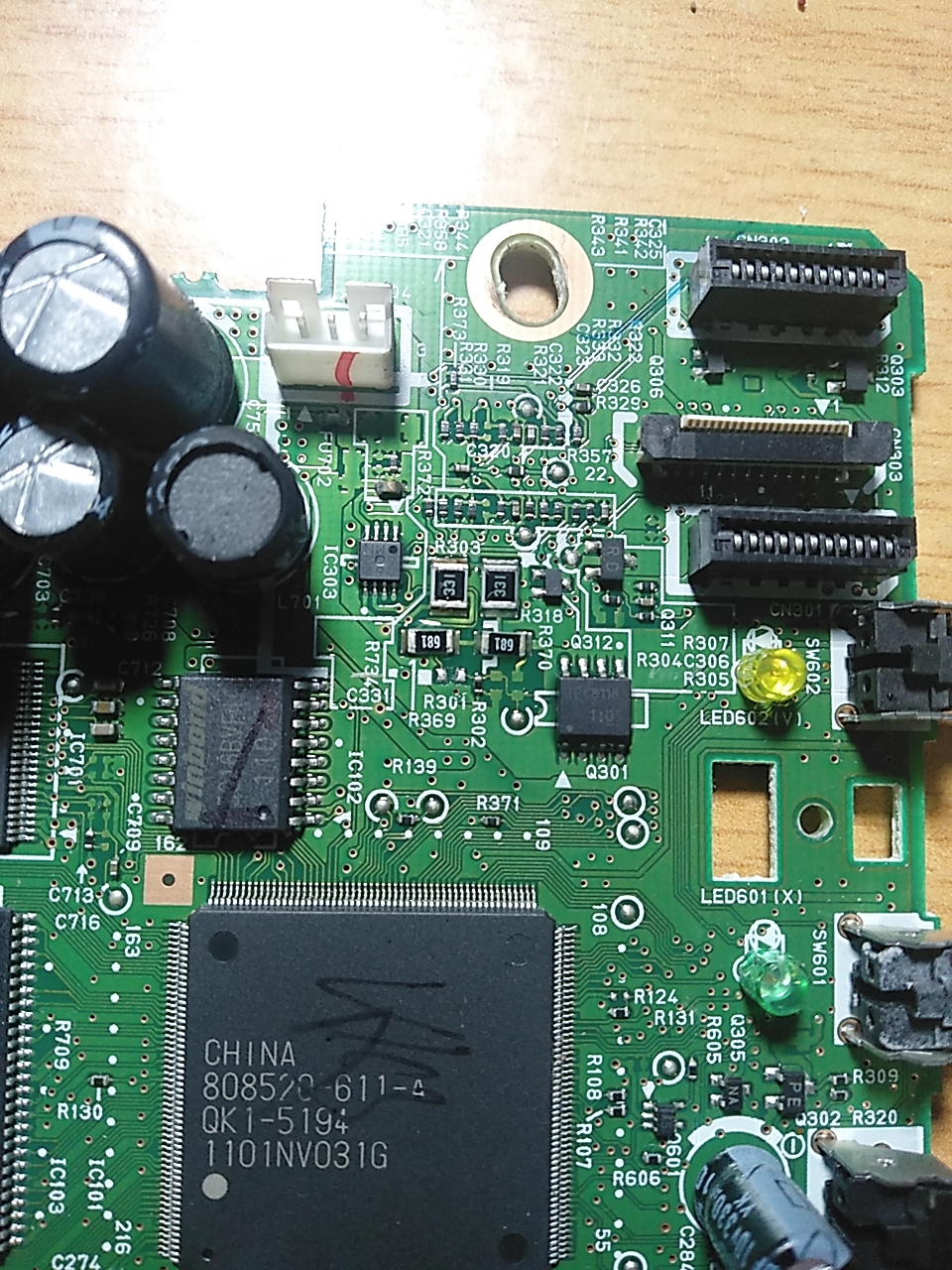

even if it is turned off, the power cord is disconnected from the power source and turned on again according to the instructions given, the Printer Error: B200 problem will reappear when the printer is instructed to print a document. Canon Printer Error B200 problem is caused by breaking the resistor coded R301. Usually caused by a surge in electric current or unstable electricity, in other words, Resistor R301 functions as a fuse or current limiter.
an image
to overcome this of course we have to replace the resistor R301 with a new unit. Raise the resistor R301 using a blower or you can use a soldering iron with the use of Flux so that the defrosting process of the lead and lifting the damaged resistor R301 becomes easy.
an image
after the resistor R301 has been successfully lifted, add a little lead in the area of ​​the resistor legs so that later the process of installing a new replacement resistor unit becomes easier. Also, use Flux to make the tin soft and melt faster.
an image
After the Resistor R301 is replaced with a proper installation, you can be sure that the Canon Printer will return to normal and can be used again to print documents.
an image
This is the Tip on how to solve the problem of Canon Printer Error: B200. This method can be applied to all Canon brand printers such as Canon MP287, Canon MP237, Canon MP258, and Canon IP2770 which experience Error B200.
